These are some pics of my journey into TC building.
A shot of my first TC, a 2.5" secondary. This is as it looked prior to burning up.
The specifications prior to it's death:
two 15/60 NSTs, 20nf MMC and 7 segment RQ/TCBOR spark gap. The night it died we were using a 12/300+ NST and 30nf of MMC capacitor, running at ~4kVA.
9 turns of 4AWG solid wire. I added about 5 more turns of 12AWG solid to the inside to eliminate the need for an off-axis inductor
Approx. 1200 turns of 32AWG magnet wire around a 2.5" cardboard tube. Winding length is 12" and total length of the coilform is about 18". Many coats of polyurethane.
Toroid from 4" dryer duct approx. 15.5" overall diameter.
Ever see a 2.5" coil throw almost 4' arcs? Pics from 9/10/2001 while running approx. 4kVA
My new 2.5" coil. I had to build another one after how well the first one worked.
My 4 inch coil.

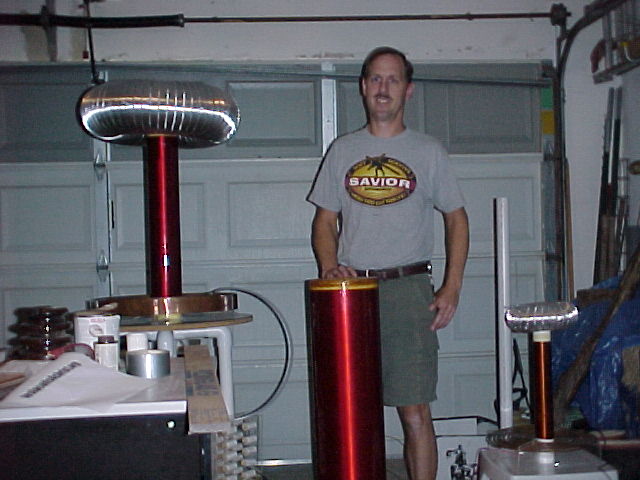

My 9 inch coil. The 9" coil is taking a while due to limited funding.
